Week 13

This week I continued sorting out issues with my PCB. I continued to run into issues with the connections. There were also a few more issues such as the PCB saying that it was not connected to the schematic. After seeing these issues I decided to start a new PCB as I thought that it would take less time than fixing all of the issues on the original. I also ran into some issues with my Wifi connection on Wednesday. I spent a while trying to figure out what the issue was and eventually I found that the ethernet cable was broken so I got a new cable and it ended up working.

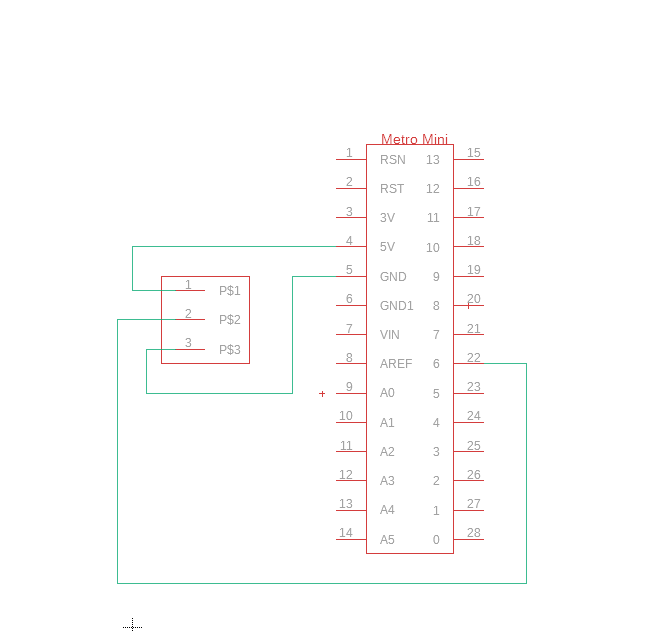

The schematic for my new PCB

Schematic for my new PCB

+
